General vehicle 4G MIMO two-in-one antenna



Professional global supplier of connectors, antennas and cable assembly products, which are widely used in the industrial, communications, military, medical and automotive industries


Consult Back

Key:Connector | Antenna

Details


Specifications

ktw



ktw

Item

Specs

4G LTE

Main Antenna









Frequency range

698-960MHZ/1710-2690MHz

VSWR

≤ 3.0

Polarization

Linear

Gain

≥1.0dBi

Input impedance

50Ω

4G LTE

Sub Antenna









Freq. range

698-960MHZ/1710-2690MHz

VSWR

≤ 3.0

Polarization

Linear

Gain

≥ 1.0dBi

Input impedance

50Ω

Isolation

Between main and sub antenna

10dB(Min)

Mechanical



Dimension

118*55*21.5mm

Coaxial cable

RG174 / Customize length

Connector

FAKRA, SMA , and others

Mounting method

Screw or 3M tape

Radome material

PC/ABS

Operation temp.

-  40˚C ~ + 85˚C

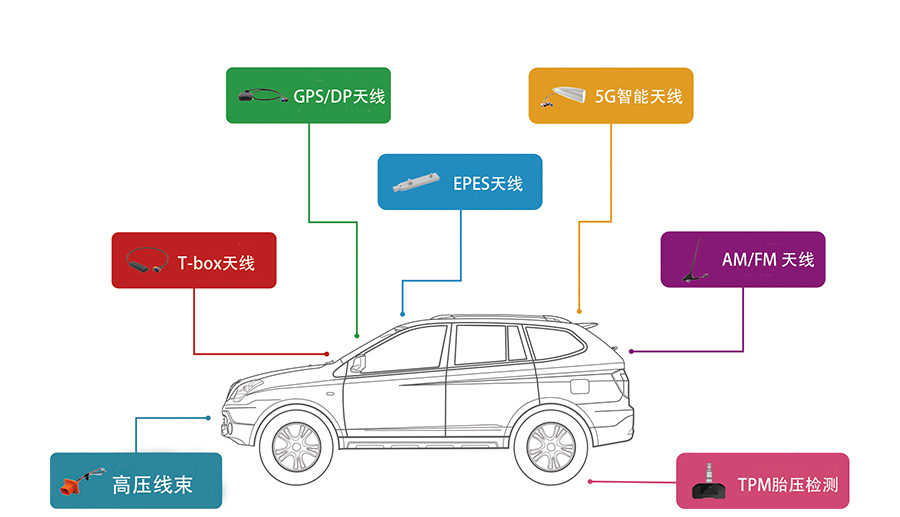

Industry application

ktw









Customized process

ktw



FAQ

Q1:Are you a factory?

CTWYes, we are a 100% factory. Established in 2013, CTW  factory size is 10K+ m2, located in historic town of Xinbei, Changzhou City, JiangSu Province, China (Post Code: 213000).

Q2:Can you produce customized product orders? OEM or ODM orders?

CTWSure. With 7+ years of OEM and ODM manufacturing experience, we are able to provide you with one-stop Custom Connector Solutions.

Q3:Why choose CTW? What makes your company a reliable supplier?

CTW Ever since founded,CTW is committed to being the world's leading manufacturer in industrial connectivity. We are the factory in China who has been certified with ISO 9001/ISO, 16949/ISO .

Q4:What certificates do your products have?

CTWOur products are certified with UL/CE/IP67/IP68/IP69K/RoHS/and so on ...... Our main markets include EU, North America, East Asia etc.

Q5:What's your regular production time after order is placed and confirmed?

CTWGenerally speaking, 3~5 days for standard products. If customized products,lead time is about 10~12 Days. If your project involves new molds to make, lead time is subject to custom product complex.

Q6:What's your strength in logistics?

CTWInternational express, by air or by sea, we can give your cost-saving suggestions. Shipment cost saving means your purchasing cost reducing. Both China export and import customs clearance at your side can be managed by us if you like to use our shipping forwarder agents. Enjoy your one-stop purchasing experience at CTW!
