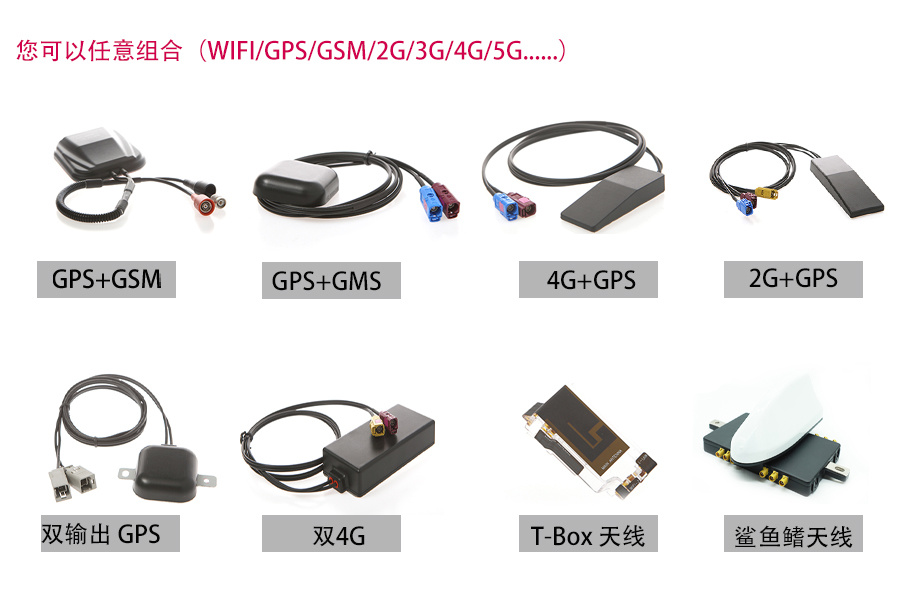

High-precision and high-positioning GSM and GPS 2-in-1 car antenna




Consult Back

Key:Connector | Antenna

Details




ktw

Item

Specs

GPS Antenna

CF

1575.42MHz

BW

CF±5MHz

Polarization

RHCP

Max gain

29±2dBi

VSWR

2.0

Axial ratio

3dB (max)

Impedance

50Ω

NF

≤ 1.5

Supply voltage

3.0V~5.0V

Current consumption(Typical value)

25mA







GSM Antenna

Working frequency

824-960 MHz/1710-2170 MHz

VSWR

≤ 2.5

Polarization

Linear polarization

Max gain

1 dBi

Input impedance

50Ω









Mechanical

Dimension

59.2 x 52.5 x 15mm

Coaxial cable

RG174 / Customize length

Connector

FAKRA, SMA , and others

Mounting method

Screw , 3M tape or magnetic

Radome material

PC/ABS

Operation temp.

-  40˚C ~ + 85˚C



Industry Applications

ktw









Customisation process

ktw



FAQ

Q1: Are you a factory?

CTW: Yes, we are 100% factory.CTW factory was established in 2013, factory size 10000 + m2, located in Xinbei Guzhen, Changzhou City, Jiangsu Province, China (Zip code:213000).

Q2: Can you produce customised product orders?OEM or ODM orders?

CTW: Of course. With more than 7 years of OEM and ODM manufacturing experience, we are able to provide you with one-stop customised connector solutions.

Q3: Why choose CTW ? What makes your company a reliable supplier?

CTW: Since its inception, CTW has been committed to being the world's leading manufacturer of industrial interconnections. We are an iso9001 /ISO, 16949/ISO certified factory in China.

Q4: What certificates do your products have?

CTW: Our products are certified by UL/CE/IP67/IP68/IP69K/RoHS/etc ...... Our main markets include EU, North America, East Asia and so on.

Q5: What is your normal production time after order confirmation?

CTW: Standard products are usually 3~5 days. For customised products, the lead time is about 10~12 days. If your project involves new mould making, the lead time depends on the complexity of the customised product.

Q6: What are your advantages in logistics?

CTW: International express, air or sea freight, we can advise you on cost saving. Savings in transport costs mean lower costs for your purchases. If you would like to use our freight forwarding, we can handle the customs clearance for your import and export from China. Enjoy one-stop shopping experience at CTW!
